Our Small & Medium ERW Tube Mill Machine delivers high-precision forming for pipes up to diameter 219 mm (for >219 mm, see our big size tube mill machine series). Driven by heavy-duty builds and smart PLC automation, this reliable tube mill ensures non-stop stability, high accuracy, and maximum efficiency. Contact us for direct factory quotes!
Our Small & Medium ERW Tube Mill combines heavy-duty mechanical engineering with intelligent PLC automation. Designed to process carbon steel, cold/hot-rolled strip steel, and galvanized steel strips, this high-performance tube mill converts flat strip into high-quality welded pipes with maximum speed and dimensional consistency.
High Accuracy & Straight Tube Output
Equipped with accurate CNC forming and simple step-by-step sizing tools, this machine offers clear size control for every tube. Specifically, the standard size limit ranges from OD 10–25mm $\pm$0.03mm to OD 76–101mm $\pm$0.1mm. Furthermore, the main tube line keeps straight runout within 0.02mm. As a result, the final tube shape stays stable during long runs.
Smooth Operation & Steady Daily Work
With a strong frame and smooth drive setup, this tube mill avoids common shake and weld misalignment. In addition, it runs with low noise and very few stops. Therefore, your team can run continuous shifts and get stable daily pipe output without unexpected line breaks.
Smart Design & Low Running Costs
The compact layout keeps material loss low and machine use high. Specifically, the precise forming unit and smooth flying saw work together to cut down scrap steel. Consequently, you can lower your raw material waste, cut down unit costs, and make high-volume steel tube supply more profitable.
Strong 3-Year Quality Coverage
Built with reliable global brand parts and tested line by line, this unit comes with a full 3-year warranty on major components. As a result, you can protect your long-term plan, raise your returns, and lower repair costs over time.
Fast Local Service & Quick Support
We offer quick on-site tech help, regional support teams, and fast spare part shipping in key global markets. Therefore, you can complete fast line setup, train your workers quickly, and stop costly wait time during daily work.

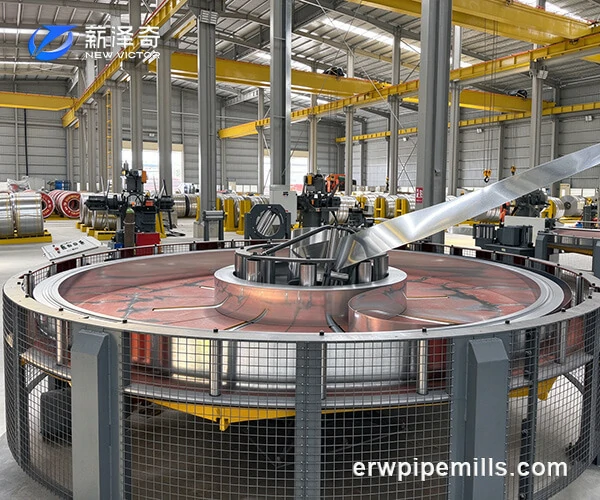

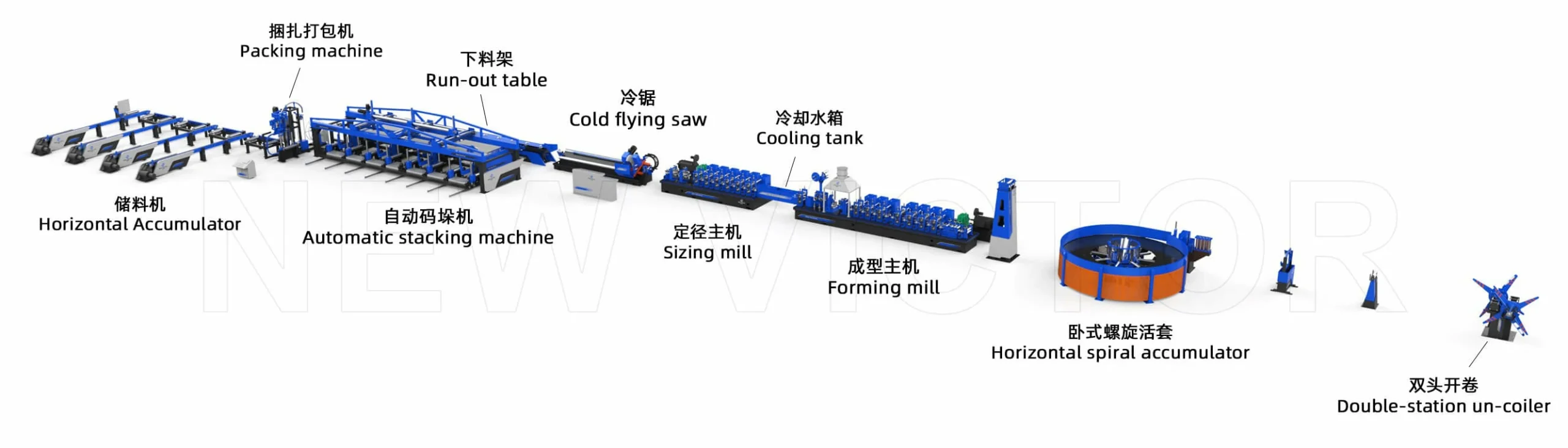

First, raw material preparation begins with the uncoiler smoothly unrolling the steel coil and feeding it into the shear & butt welder to trim and join strip ends, securing uninterrupted coil changes. Next, the steel strip enters the spiral accumulator for buffer storage, providing ample volume to guarantee continuous, zero-downtime line operation.

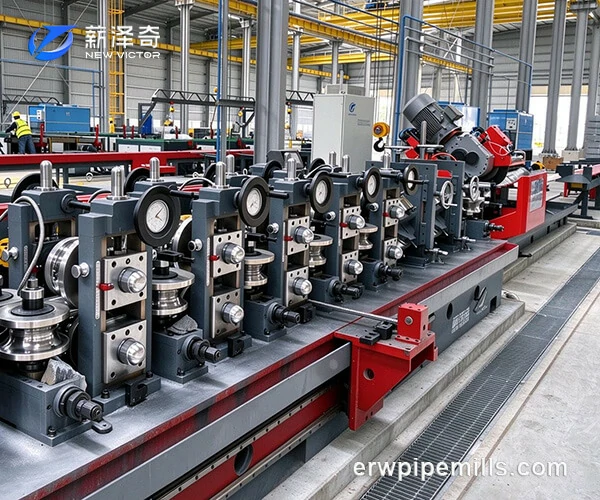

Then, the steel strip advances smoothly into the multi-stand roll forming mill, gradually bending into the targeted round tube profile. In the high-frequency induction welding zone, skin and proximity effects heat the strip edges instantly to a molten state before squeeze rolls forge them together. Furthermore, an online bead scraper removes external weld seam burrs, followed by deep water trough cooling to quench the weld and lock in structural strength.
In addition, the cooled tube enters the sizing mill for multi-pass micro-rolling, precisely calibrating diameter tolerance and ovality. Consequently, the multi-axis Turk’s Head alignment system corrects axial bending at the micron level, ensuring exceptional dimensional accuracy and straightness for every finished pipe.

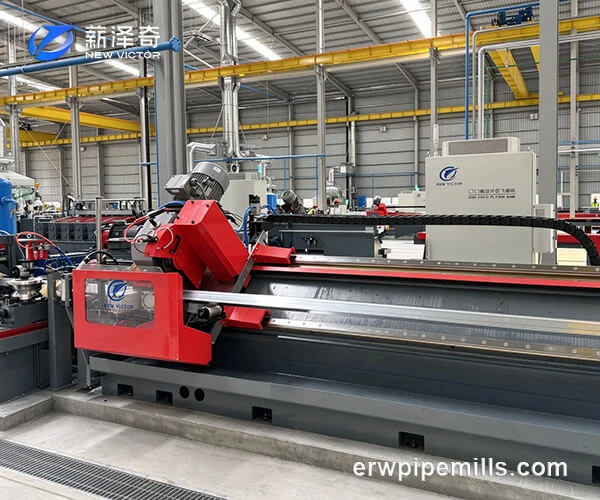

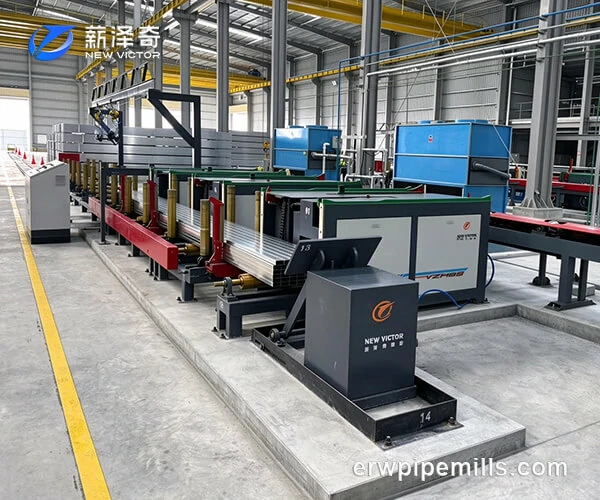

Finally, the servo flying cut-off saw tracks high-speed line movement to deliver precise, burr-free length cutting without slowing down production. As a result, the cut steel pipes travel along the conveyor into the automatic stacker for neat bundling, stacking, and packaging, preparing them for smooth storage and transport.
| Model | Tube O.D. (mm) | Wall Thickness (mm) | Square/Rectangle (mm) | Wall Thickness (mm) | Speed (m/min) |
| VZH-25 | 9~25.4 | 0.25~1.2 | – | – | 30~120 |
| VZH-32 | 10~32 | 0.25~2.0 | 8*8~25.4*25.4 10*6~31.8*19.1 | 0.25~1.5 | 30~120 |
| VZH-40 | 12.7~40 | 0.3~2.0 | 10*10~31.8*31.8 20*10~40*20 | 0.3~1.5 | 30~110 |
| VZH-50 | 16~50.8 | 0.4~2.5 | 12.7*12.7~40*40 20*10~50*25 | 0.4~2.0 | 30~110 |
| VZH-63 | 19.05~63.5 | 0.6~3.5 | 15*15~50*50 20*10~60*30 | 0.6~3.0 | 20~90 |
| VZH-76 | 25.4~76.2 | 0.8~4.0 | 20*20~60*60 30*15~80*40 | 0.8~3.5 | 20~90 |
| VZH-90 | 30~90 | 0.8~4.0 | 25*25~70*70 30*20~80*40 | 0.8~3.5 | 20~90 |
| VZH-100 | 31.8~101.6 | 1.0~4.25 | 25*25~80*80 30*20~100*50 | 1.0~3.5 | 20~90 |
| VZH-114 | 35~114.3 | 1.0~4.5 | 30*30~90*90 40*20~120*60 | 1.0~4.5 | 20~80 |
| VZH-127 | 40~127 | 1.2~5.5 | 40*40~100*100 60*30~120*80 | 1.2~5.0 | 10~70 |
| VZH-140 | 50~141.3 | 1.2~6.0 | 50*50~110*110 60*40~150*75 | 1.2~5.5 | 10~60 |
| VZH-168 | 60~168.3 | 1.5~8.0 | 60*60~130*130 80*40~160*80 | 1.5~7.0 | 10~50 |
| VZH-219 | 89.1~219.1 | 2.0~10.0 | 70*70~160*160 100*50~200*100 | 2.0~9.0 | 10~50 |
